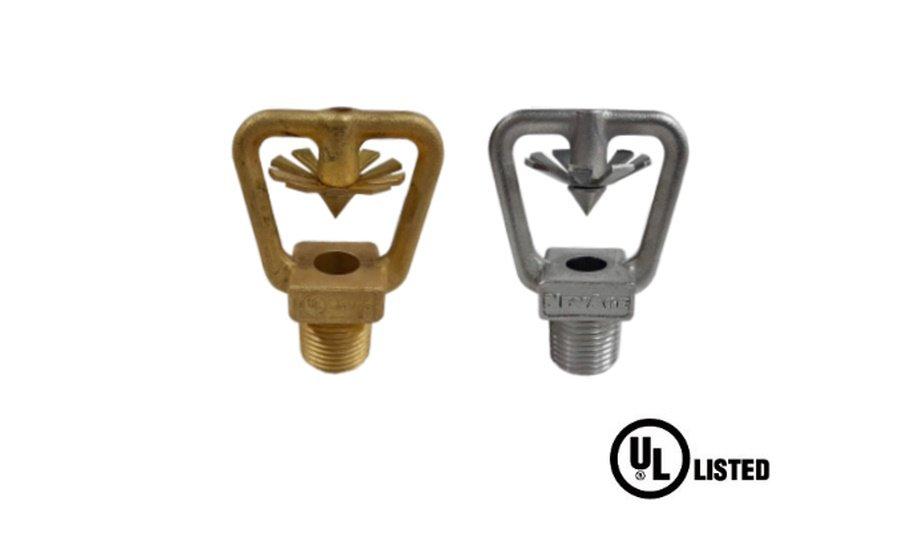

Recently UL Listed Medium Velocity Spray Nozzles (Model: MV-B and MV-S). NewAge medium velocity water spray nozzles are used in fixed water spray systems for cooling of storage tanks and vessels, exposure protection of structures, control burning and extinguishment of Class-A fires designed to spray water at a medium velocity (i.e., the strength of the spray is weaker than HVWS systems).
When a fire occurs in another area of the plant, medium velocity sprayers are an effective method of protecting nearby structures from heat during a fire by providing a continuous cooling spray over the exposed surfaces.
Key Features
- Directional spray nozzle with cone-shaped spray pattern.
- Spray nozzles are designed to produce extremely uniform coverage.
- Suitable for a minimum working pressure of 7 PSI (0.5 Bar) and maximum working pressure of 175 PSI (12 Bar).
- Wide range of K-factor and spray angle are available.
- Available in SS316 construction.
- Finish: Available in natural brass finishes or chromium plated or powder coated.
