Dafo Vehicle Introduces Li-IonFire To Increase The Safety Of Electric And Hybrid Electric Vehicle Operations

17 Jul 2020

Download PDF version

As there is a global transition to renewable fuels, there is an increasing demand for electric or hybrid vehicles (EV and HEV). However, knowledge is limited about the new fire risks associated with vehicles having these new energy carriers. Consequences connected to risks of Li-ion batteries, in case of a malfunction, can be serious, for example, they can result in toxic gas emissions or explosion.

In collaboration with the coordinator, Dafo Vehicle Fire Protection, an EU initiative has built a fire protection system that addresses and mitigates these risks effectively and safely. Fire suppression systems for vehicles have been on the market for decades, and are widely used and regulated across a wide variety of industries. However, these systems are tested to be effective on vehicles with combustion engines, and all test standards are designed with this in mind.

hybrid electric vehicles

The growth of the electric and hybrid electric vehicle industry has accelerated the demand for new fire suppression technologies. “With the rapid introduction of electric and hybrid electric vehicles in public transport, there are new challenges because they present totally different risk scenarios,” says Anders Gulliksson of Dafo Vehicle, coordinator of the EU-funded Li-IonFire (Automated e-vehicle Lithium Ion Battery Early Warning and Fire Suppression System) project.

The partners studied the various fire risks related to battery spaces, including specific risks when charging

“When the commonly used Li-ion batteries fail through short circuiting, overcharging, high temperatures, mechanical damage and overheating, this might cause thermal runaway and the release of a flammable electrolyte, which makes fire extinguishing very difficult. In addition to the dramatic fire scenario with the rapid increase in heat, there are a lot of potentially toxic gases being emitted.”

comprehensive solution for fire mitigation

The project partners, including Dafo Vehicle Fire Protection and RISE Research Institutes of Sweden, explored different techniques to detect potential battery failure, as early as possible, and take immediate action to stop, or delay, a potentially hazardous situation. The partners studied the various fire risks related to battery spaces, including specific risks when charging, and procedures for handling electric vehicles and batteries after a crash.

They also investigated to what extent fixed and integrated fire suppression systems, which are widely used to protect engine compartments on heavy vehicles, can be applied to vehicles powered by Li-ion batteries, and how they should be designed. Through extensive testing, the Li-IonFire team better understood how a breakdown occurs within the battery and how it can be detected.

Fire suppression system

With proper detection and system activation, the hazardous scenario can be reversed and even stopped entirely

“If a system is activated at this early stage, the battery can be ‘brought back’ to a safe state, without the fire developing further,” explains Gulliksson. “The tests have also shown that even with a late deployment of the fire suppression system, there’s a possibility of delaying the battery reaching a critical state, meaning that the chance of safe evacuation is very high.”

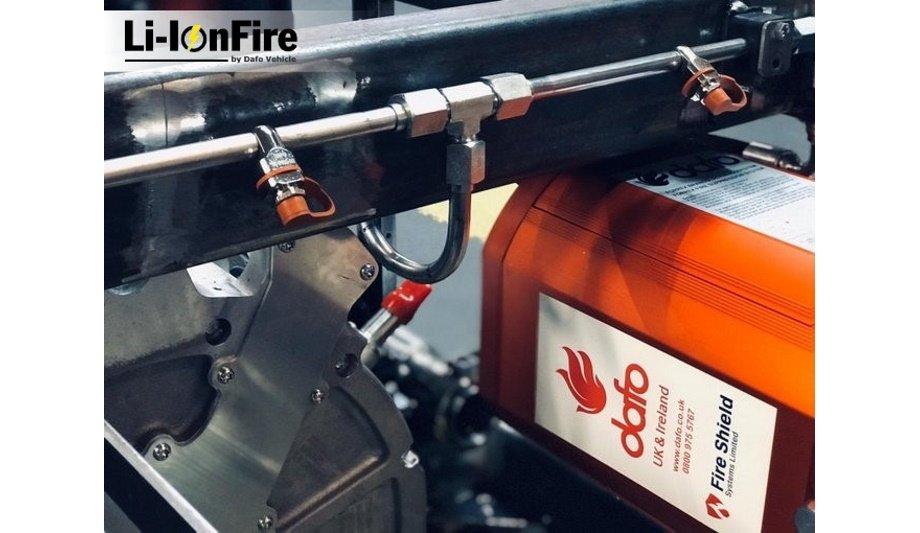

With proper detection and system activation, the hazardous scenario can be reversed and potentially even stopped entirely. The project team successfully validated and demonstrated a highly innovative fire protection system for electric and hybrid electric vehicles. The new system provides an early fire warning system, and spot cooling to prevent thermal runaway while localizing and suppressing fire.

new suppression agent

The system was officially unveiled at in 2019, and has generated tremendous interest from both end users and vehicle manufacturers.

“Li-IonFire delivers to the market a product that didn’t exist until now: a system that can offer real protection against battery fires, using a new suppression agent, Forrex EV, which is specifically developed for these applications,” concludes Gulliksson. “Li-IonFire will significantly boost the safety of operators and the protection of valuable assets.” Li-IonFire will be available from 01st September 2020.
