For facilities management, anticipating any large-scale evacuation is at the very forefront of the fire safety measures they must consider to underpin emergency planning. As one recent example where hundreds of people had to be evacuated from a building shows, planning for public address announcements is a safety-critical concern that demands attention to the best practice offered by the latest audible warning systems.

Why Voice Alarm Systems?

In modern buildings, there may be literally dozens of different types of audible warning specified: fire alarm systems, emergency exit alarms, lifts/elevators, intrusion alarm systems, and each can have their own audible warning device.

With so many different types of audible warning devices, it can be confusing to building occupants when an alarm sound. Is it the fire alarm? An emergency exit alarm? Or a public safety alert? To counter these conflicting responses, voice sounders are now an established and effective contribution to voice evacuation systems in large public and commercial buildings and can be a viable alternative to more complex VA (Voice Alarm) systems.

While frankly outmoded fire alarm systems based on bells have not yet been fully replaced, the concept of voice commands to instruct and direct people on how to leave a building or other area during an emergency is widely recognized as the most efficient and sensible way to fulfil an important safety-critical function.

Response In The Event of Fire

Research has shown that voice alarm messages result in quicker reaction times than when sirens or bells are used, and has resulted in VA Systems becoming more commonplace as the primary means of evacuation in public buildings.

There is well-documented research into people’s behavior in the event of fire. Most striking is the variation in the response to alarm signals: A clear voice alarm message greatly increases the response rate

  • 13% of people react in a timely manner to bells
  • 45% of people react to text information
  • 75% of people react in a timely manner to voice messages

Further research shows that people’s behavior varies depending on the environment, and in an emergency, they may exit the building using the same door they used to enter. The use of a clear voice message greatly increases the response rate and provides the opportunity to advise occupants of the safest emergency route.

Voice-Enabled Emergency Instructions

Behavioral science studies reveal that the persuasive power of a voiced announcement is reliant on the vocal characteristics and the perceived credibility of the speaker. Think of virtual assistants Siri, Alexa, and Satnav (for most GPS navigation systems the default voice is female). It’s clear the sex of the announcer/instructor influences perceptions of credibility. So Alpha Male is not the popular choice while a female voice, steady and calm, is a norm. Similarly, for emergency alerting systems, it’s shown that women’s voices are more persuasive, particularly when the announcement is a non-gendered issue.

James Jones, Managing Director of Vimpex, UK independent manufacturer and distributor of Fire Detection, Alarm and Evacuation products and accessories, has extensive experience of the analytics behind this issue of voice-based alerts to convey authority. “It is commonly accepted that the female voice is more appropriate for the vast majority of applications and in fact, the female voice carries somewhat better in many environments. That’s why women’s voices in seven languages are available with our products. When first developing the Vimpex Fire-Cryer Voice Sounder ranges we looked at the difference between male and female voices and measured such aspects as an instinctive reaction and empathetic acceptance.

Female voice has been deemed appropriateAnother important aspect is the behavior of the female voice when used in sounder technology. The female voice is purer in that it actually has a narrower frequency range at the same Sound Pressure Level (SPL) than the male equivalent. This means that it is much more easily reproduced through the Fire-Cryer sounder and, for any given sound level, requires less current than a male voice.”

James also confirms that he has encountered no specification for voice sounders where a benefit is said to derive from male authority over females. Interestingly, even products supplied to national regions that are arguably more traditional and still patriarchal, the female voice has been deemed appropriate.

Integrated New and Existing Fire Alarm Systems

The trend towards the use of voice sounders as integral to automated fire system performance is growing. With multiple sounder circuit synchronization, up to seven pre-recorded messages available, and with growing ranges of voice sounders constantly being introduced, the message is clear that voice sounders are intelligible, effectively loud enough and can be easily integrated into both new and existing fire alarm systems.

For example, the Fire-Cryer is a very versatile product, both able to be used as a drop-in replacement for basic tone sounders or as part of a sophisticated engineered solution. When specified as a multi-message system, the Fire-Cryer has been used extensively in shopping malls (Arndale Centres and Gun Wharf Quays), museums (Liverpool Maritime Museum), areas of mass transit (London Underground), Schools (for both fires, lockdown and class change) and a raft of mixed-use residential, retail and commercial spaces.

Choose A Fire Alarm Design

The first task of any fire alarm design is to agree on the evacuation strategy and whether there is any requirement for staged or phased evacuation. Then the designer must ensure agreement with the client and the end-user as to the choice of messages and preceding attention-drawing tones to be used in the system. Use of multi-message voice sounders is set to boom for general evacuation and public safety systems

The choice of messages is extensive and, with seven messages available in a single sounder, a fire alarm system can be expanded to include inputs for bomb alerts, terrorist threats, coded warnings, water leakage alerts, class change announcements, system tests, all clear announcements, machinery shut down warnings, health and safety reminders, general alert messages, and of course fire alarm messages.

The potential is huge and with the trend for fire evacuation systems to be used for general evacuation and public safety systems, the use of multi-message voice sounders is set to boom.

Voice Technology Reduce Delay In Evacuation

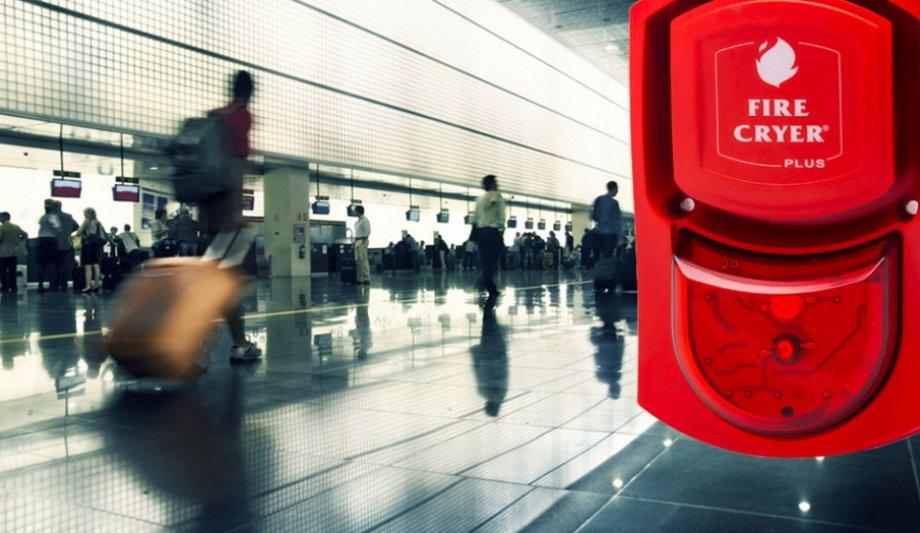

The Vimpex Fire-Cryer ranges of Voice Sounders, are good examples of how voice technology is proving to reduce delay and response rate in evacuation times. Fire-Cryer can be used as a single message 24V conventional voice sounder on any sounder/notification alarm circuit or as part of a sophisticated multi-message, multilingual evacuation system.

Multiple message broadcasting is also available with a variety of messages, including evacuation, coded or lock-down messages, general safety, or security alerts. Foreign language and bespoke messages are also available. The use of a high-quality armature capsule technology ensures high sound levels, excellent intelligibility, and broadcast of clear, unambiguous messages.
