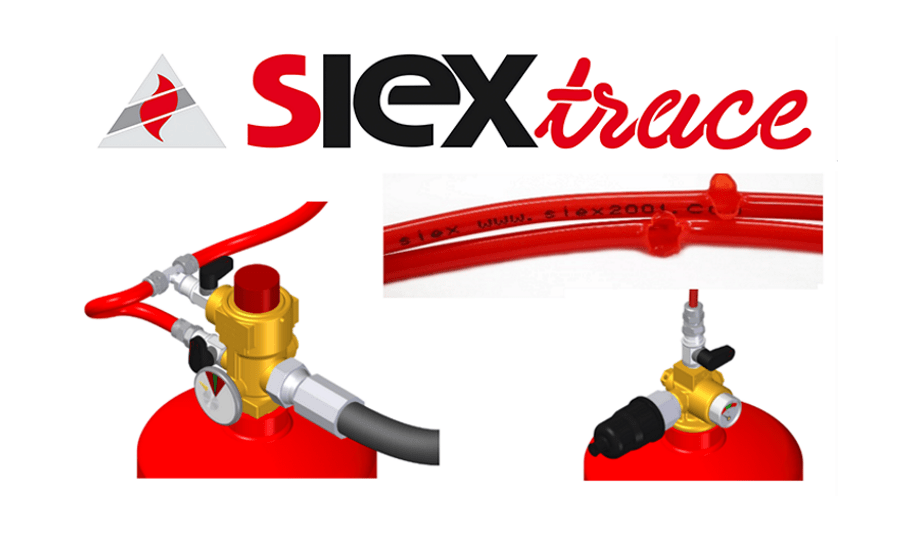

The pneumatic detection and automatic fire extinguishing tube, has passed all the demanding UL tests with ease, is built with a state-of-the-art polymer capable of maintaining its properties in the most demanding environments, thus allowing the temperature of activation is very precise and allows working with greater separation between the path of the sensor tube, optimizing the amount of material used.
The tube is compatible with all fire fighting agents on the market:
- HFC-125
- HFC-227ea
- FK-5-1-12
- IG-55
- IG-541
- IG-01
- IG-100
- CO2
- Chemical Powder ABC
- Chemical Powder BC
- Chemical Powder D
pneumatically activate systems
The tube is designed to pneumatically activate direct and indirect systems, this allows the systems in which the tube is installed to operate without the need for electrical current.
- Direct System
In the direct system, the tube works as a detection device, detecting when there is an increase in temperature caused by a fire, and as a diffuser, distributing the agent in the protected area.
- Indirect System
In the indirect system, the tube works as a detection device, detecting the temperature increase produced by a fire, triggering the cylinder valve and releasing the extinguishing agent through the diffusers, distributing it in the protected area.
