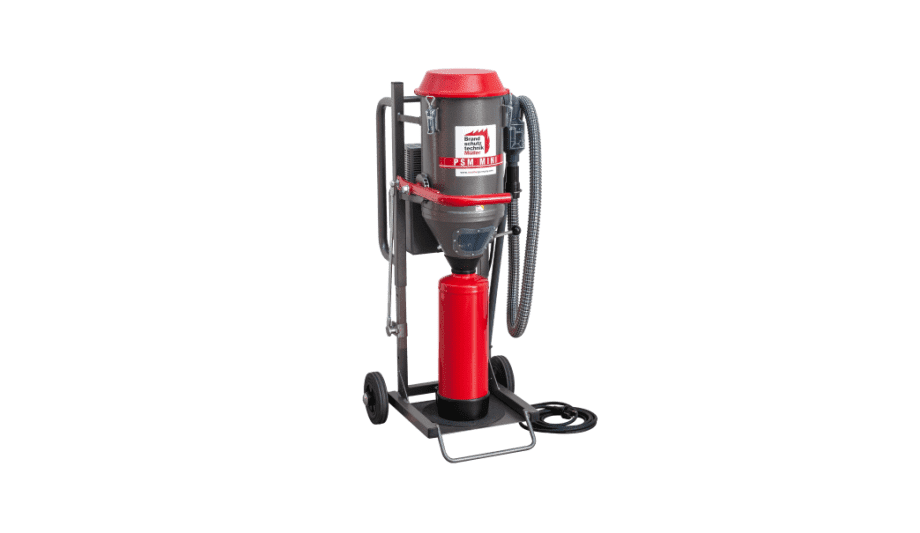

If one is looking for a particularly light transfer system, the PSM MINI Basic should be their first choice. Brandschutztechnik Müller GmbH’s system weighs just 34 kg and with its transport height of less than one meter, the PSM MINI Basic also finds its place in small service vehicles.
- Large wheels with roller bearings
- For fire extinguishers with filling openings from 28-77 mm
- Compact dimensions, especially portable
fire extinguishing systems
The PSM MINI Basic is the only machine in its class to feature mechanical backwashing and an automatic non-return valve. This gives the user the advantage of refilling fire extinguishers from 1-12 kg quickly, safely and cleanly, even with their smallest system. With the 12 kg storage container, the user can refill fire extinguishers of different powder types without intermediate container. And the user can save a lot of time in the continuous process for fire extinguishers of the same type of powder.
Technical details
- Electric motor: 230 V, 50 - 60 Hz, 1.2 kW, 18000 min-1
- Suction capacity: 2050 l/min
- 5 m cable supply line H07RN-F 3 G 1.5 mm², oil and acid resistant
- Operating noise: 93 dB(A)
- Capacity of the storage container: 12 kg
- Filter package: 10 filter cartridges and stainless steel sieve
- Filling opening of the fire extinguisher: 28 - 77 mm
- Reversing process: mechanical
- Suction hose: Ø 32 x 1400 mm
- Suction pipe: PVC Ø 25 x 780 mm
- Transport wheels: Ø 160 mm, roller bearing
- Dimensions: 885 mm transport height
- 1270 mm max. working height, 500 mm width, 545 mm depth
- Weight: 34 kg
- Color: Gray, hammer blow
- Electrical protection class: IP54
