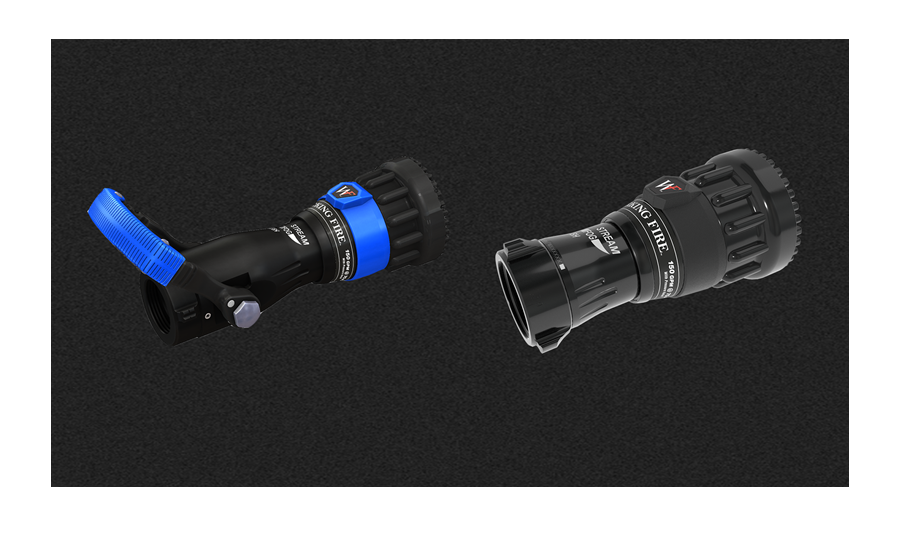

TFT is offering a new nozzle to the North American fire service - The Working Fire nozzle. A 150 gpm @75 psi fixed GPM nozzle with TFT’s pressure relief.
The new TFT Working Fire nozzle delivers performance when one needs maximum flows for a “working fire.” For everyday use, it is a 150 gpm @75 psi Fixed GPM Nozzle, but when one need even more GPM, the nozzle’s exclusive pressure relief system dramatically limits nozzle reaction.
At low flows, just like every other fixed GPM nozzle, it is clear from the stream quality that optimum flow has not yet been reached. When one achieves the 150gpm rate, the nozzle flows great, and there is about 65lbs of nozzle reaction force. However when one needs a lot more GPM, that is where the Working Fire excels.
Increase in reaction force
By integrating TFT’s exclusive pressure relief, a 33% increase in flow rates only yields a 33% increase in reaction force. Compare that to a traditional fixed nozzle, which increases 78%. With the Working Fire nozzle, TFT is able to deliver high GPM (200 gpm) with about 30lbs less reaction force than other nozzles.
The Working Fire is available in a break-apart or integrated, stainless steel ball valve configuration. Pistol grips, bail handles, and stream shaper are available in colors and spinning teeth are an option. The nozzle has a rugged, black hard coat finish with a black reflective Scotchlite trim. It has a tactile indicator and detent for straight stream that prevents unintended rotation into other streams.
