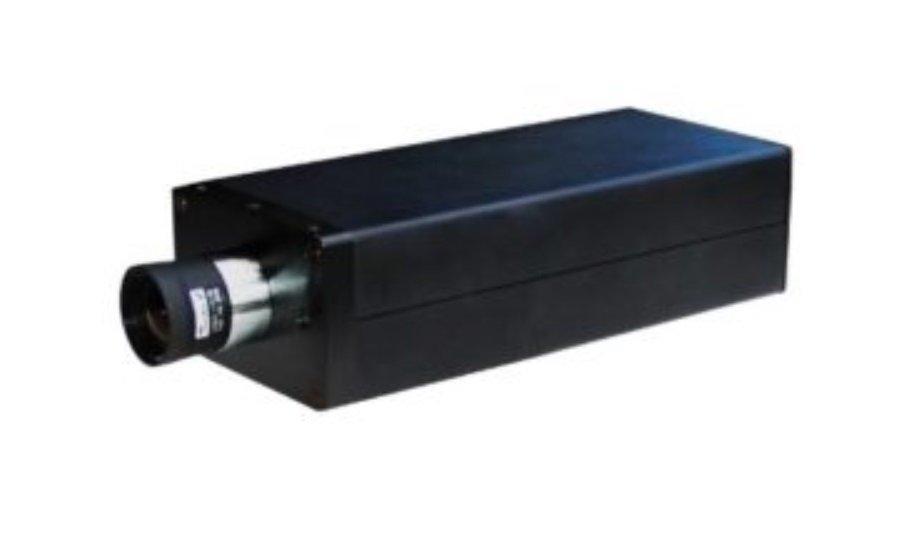

The VID Camera camera combines a standard network camera's enhanced resolution and picture clarity with built-in flame, smoke, and motion detector capabilities. The FM-approved technology detects:
- Presence of flames within the field of view of the camera.
- Reflected fire light when flames are obstructed.
- Presence of pluming smoke clouds and ambient smoke.
- Unauthorized Intrusion.
FSM-IP network video recorder
A scalable, network video recorder with video management software, each FSM-IP is designed to support up to 32 Fike Video Analytics network, flame-detecting cameras.
These recorders are available in multiple sizes: The Network Server Lite and the Network Server.
- Constantly records video streams onto the internal hard disk.
- Customizable storage space to meet application needs.
- Provides monitoring of live videos.
- Maintains an event log for all alarm conditions.
- Dispatches alarms and videos to remote locations.
- The network management interface for configuration and maintenance.
Fike VMS, flame, smoke, and intrusion detection monitoring
Fike Video Management Software is a state-of-the-art monitoring, investigative and administrative tool designed to access multiple FSM servers seamlessly.
Fike Video Management Software combines physical security with early warning flame and smoke detection:
- Access multiple FSM-IPs at a time.
- Integrates building, site, and floor plans, as well as 3rd-party systems.
- Remote monitoring over the Internet.
- Playback of archived events.
Fike video analytics server
The Fike Video Analytics Server can process video signals from up to 16 ONVIF video streams
Fike Video Analytics Server is a Wintel-based solution for flame, smoke, and intrusion detection, designed for use in places where analog/network cameras are already in place. While the result may not be an NFPA-approved solution, the Fike Video Analytics Server uses the same algorithms as the Fike Video Analytics IP™ camera. It is capable of detecting and alarming a variety of events.
The Fike Video Analytics Server can process video signals from up to 16 ONVIF video streams and can be used over a single network by one Fike Video Analytics workstation for easy scalability.
Features
- Can process up to 16ONVIF video feeds from IP cameras or encoders.
- Provides early-warning flame, smoke, and motion detection similar to the Fike Video Analytics IP camera.
- Has multiple unit scalability over the IP network.
- Provides remote monitoring over the LAN or Internet using Fike Video Management Software.
- Provides remote playback of archived events.
- Addresses the security needs of the organization.
- Requires a 1GB network to support video transmission.
