Pavlis a Hartmann s.r.o. PH - VH 450 Suction and Discharge Hose with a Frame PH - VH 450 Suction and Discharge Hose with a Frame

Technical Specification

Features:

Make: Pavlis a Hartmann s.r.o.
Model code: PH - VH 450 Suction and Discharge Hose with a Frame
Type: Booster Fan - Suction and Discharge Hoses

Additional info:

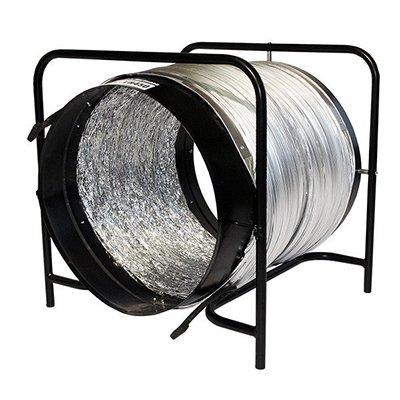

The flexible suction and discharge hose is designed for the booster fans PH-VP450, PH-VP450E, PH-VP450E3. The hose with a connection flange is used for the ventilation of smoke filled areas. It is an accordion type hose fitted with steel flanges at both ends and mounted in a tubular frame. It consists of a spiral reinforcement of steel wire and 5-layered aluminum laminate with a total thickness of 45 microns. Its temperature resistance is from -30 to +140 oC . It has self-extinguishing capability. The combination of these materials provides excellent flexibility and strength. One end of the hose is fixed to a portable transport frame. The other free end with a flange is designed to be attached to the fan.

Contact manufacturer Contact manufacturer

Make	Pavlis a Hartmann s.r.o.
Manufacturer	Pavliš a Hartmann s.r.o.
Category	Fire and Rescue>Apparatus and Equipment Accessories
Model code	PH - VH 450 Suction and Discharge Hose with a Frame
Type	Booster Fan - Suction and Discharge Hoses
Additional info	The flexible suction and discharge hose is designed for the booster fans PH-VP450, PH-VP450E, PH-VP450E3. The hose with a connection flange is used for the ventilation of smoke filled areas. It is an accordion type hose fitted with steel flanges at both ends and mounted in a tubular frame. It consists of a spiral reinforcement of steel wire and 5-layered aluminum laminate with a total thickness of 45 microns. Its temperature resistance is from -30 to +140 ^oC . It has self-extinguishing capability. The combination of these materials provides excellent flexibility and strength. One end of the hose is fixed to a portable transport frame. The other free end with a flange is designed to be attached to the fan.
