Bosch Provides Aspirating Smoke Detection System To Secure Mercedes-Benz Car Manufacturing Plant In Russia

Download PDF version

Located 40 kilometers outside the Russian capital, the new Mercedes-Benz passenger car factory is a showcase for Industry 4.0 automotive manufacturing. To ensure the safety of more than 1,000 employees at the massive facility, Bosch provided a fire alarm and security system, replete with voice evacuation capabilities to meet the specific safety needs of modern-day car factories.

Future of car manufacturing

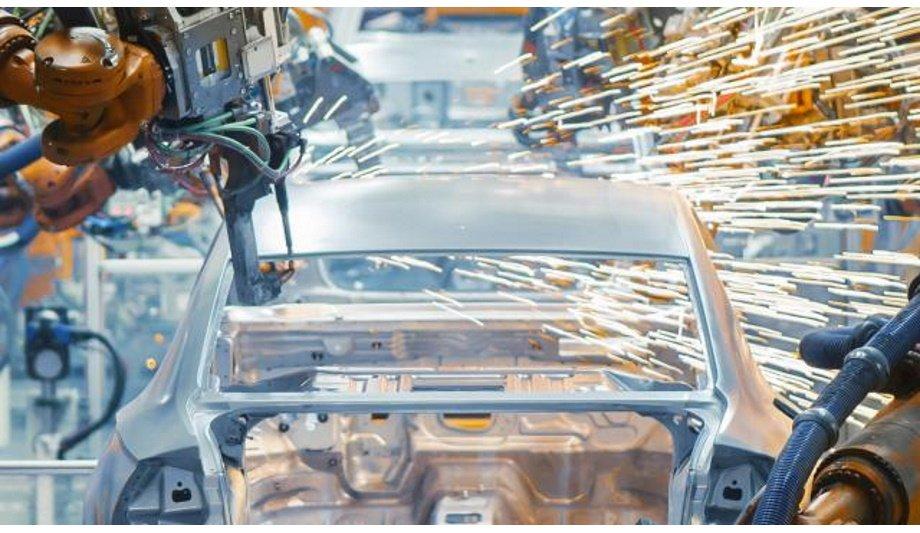

Walking into the main manufacturing hall of the new Mercedes-Benz Cars plant in the Moscow region is to see the future of automotive production. Amid glass walls and high ceilings, robots and humans work side-by side to assemble the company’s most popular limousines for the Russian market. From chassis welding to windshield installation to painting, the plant combines all production steps in the same building as part of a ‘one-roof concept’.

But from a fire safety perspective, the ‘one-roof concept’ with its tall factory ceilings and open floorplan poses challenges. The reason: Conventional, point-type fire detectors exceed their performance limit when it comes to detecting smoke particles inside such a vast, air-conditioned space. Working closely with the client, experts of Ateksis, the system integrator who lead this project, realized that early fire detection would take a solution just as innovative as the futuristic car factory itself.

Safety for automotive factories

They can detect fires in the beginning stages (called the “smoldering” phase) even before visible smoke is released

Additionally, Mercedes-Benz required a centrally controlled combination of intrusion alarm and video security to guard the entire perimeter of the 85-hectare facility with its total of seven buildings. And could the solution be ready within a few weeks for the plant’s grand opening featuring international dignitaries? Working on a tight timeline, the team of Bosch and Ateksis experts selected a fitting smoke detection technology: aspirating smoke detectors.

Perfectly suited for large warehouses, the detection units are located within a pipe system that constantly ‘inhales’ samples of air, which are checked for smoke particles via intelligent signal processing technology. As a result, the light-based detectors achieve smoke sensitivities as precise as 0.05%. They can detect fires in the beginning stages (called the “smoldering” phase) even before visible smoke is released.

electrical interference for reliability

Aspirating detectors also pinpoint the exact location of fires, thus reliably preventing major damage in most cases. The system also suppresses environmental factors that typically cause false alarms in car factories, including dust, flying sparks and electrical interference for maximum reliability.

“The Mercedes-Benz project is an important reference for us. It shows the level of integration and customer focus made possible by Bosch solutions. Our system has succeeded in meeting the specific needs of automobile manufacturers in the next generation of car production facilities”, said Ivan Konukhin, Bosch Security and Safety Systems Russia.

audio sound quality

The ceiling loudspeakers are equipped with a metal fire dome to adapt to the in-air handling spaces

Amid the acoustic conditions inside the vast production plant, a total of 650 horn and ceiling loudspeakers from Bosch deliver sufficient volume and intelligibility. The horn speakers offer a wide opening angle to broadcast sound across factory floors while offering protection from water and dust, as well as the corrosive effects of industrial environments. What’s more, the ceiling loudspeakers are equipped with a metal fire dome to adapt to the in-air handling spaces of the automotive plant.

The cabinet loudspeakers are certified according to the fire evacuation EN54-24 standard for reliable performance under emergency conditions. Overall, this level of audio sound quality directly serves to keep workers secure and informed, especially if evacuation becomes necessary.

automatic fire detectors

In the bigger picture, the total of 248 aspirating detectors inside the main production hall are centrally networked via Modular Fire Panels 5000 series and connected to more than 2,500 automatic fire detectors installed throughout six additional administrative buildings on the premises. For maximum employee safety, clear voice and audio alarm is provided by the PRAESIDEO Digital Public Address and Voice Alarm System.

With Smart Safety Link, the interfaced fire and voice alarm system offers a full control in case of emergency, including the customization of the fire verification time and the automatic process that can ensure a safe phased evacuation. To ensure full visibility of the premises and around-the-clock safety, the video security solution consists of 112 high-definition cameras from Bosch. While bullet and moving cameras secure the perimeter, dome cameras monitor inside spaces.

Video Management System

Integrated on the Bosch Video Management System, all cameras can be controlled by the on-site security team

Integrated on the Bosch Video Management System (BVMS), all cameras can be controlled centrally by the on-site security team inside the control room. Bringing security full-circle, the video system has a direct interface with intrusion alarm system containing over 200 detectors.

This seamless integration of all solutions on the Building Integration System (BIS) from Bosch enables a host of additional functions: for instance, the system alerts the control room when a fire detector is triggered and sends live images from the nearest camera for full situational awareness.

Aspiration smoke detector

As Ivan Konukhin at the Regional Representative Center North-West and South Russia at Bosch Security Systems explains: “The cooperative functionalities between BIS and BVMS components were programmed according to customer requirements in an uncomplicated manner via macros, which also supported a timely installation.”

Bosch Security System’s solution consists of:

FPA-5000 Modular Fire Panel
Solution Smart Safety Link
License key for voice alarm
Aspiration smoke detector 2 pipe systems
AVENAR detector 4000
PRAESIDEO Digital Public Address and Voice Alarm System
Metal Fire Dome
Cabinet loudspeaker, metal, rectangular
Horn loudspeaker, 10W, 6x10"
Ceiling loudspeaker, 6W, ABS
MAP 5000 family
IP4000i, 5000i and 6000 cameras
AUTODOME IP Cameras
Access Control System
Bosch Video Management System
Building Integration System

Download PDF version Download PDF version
